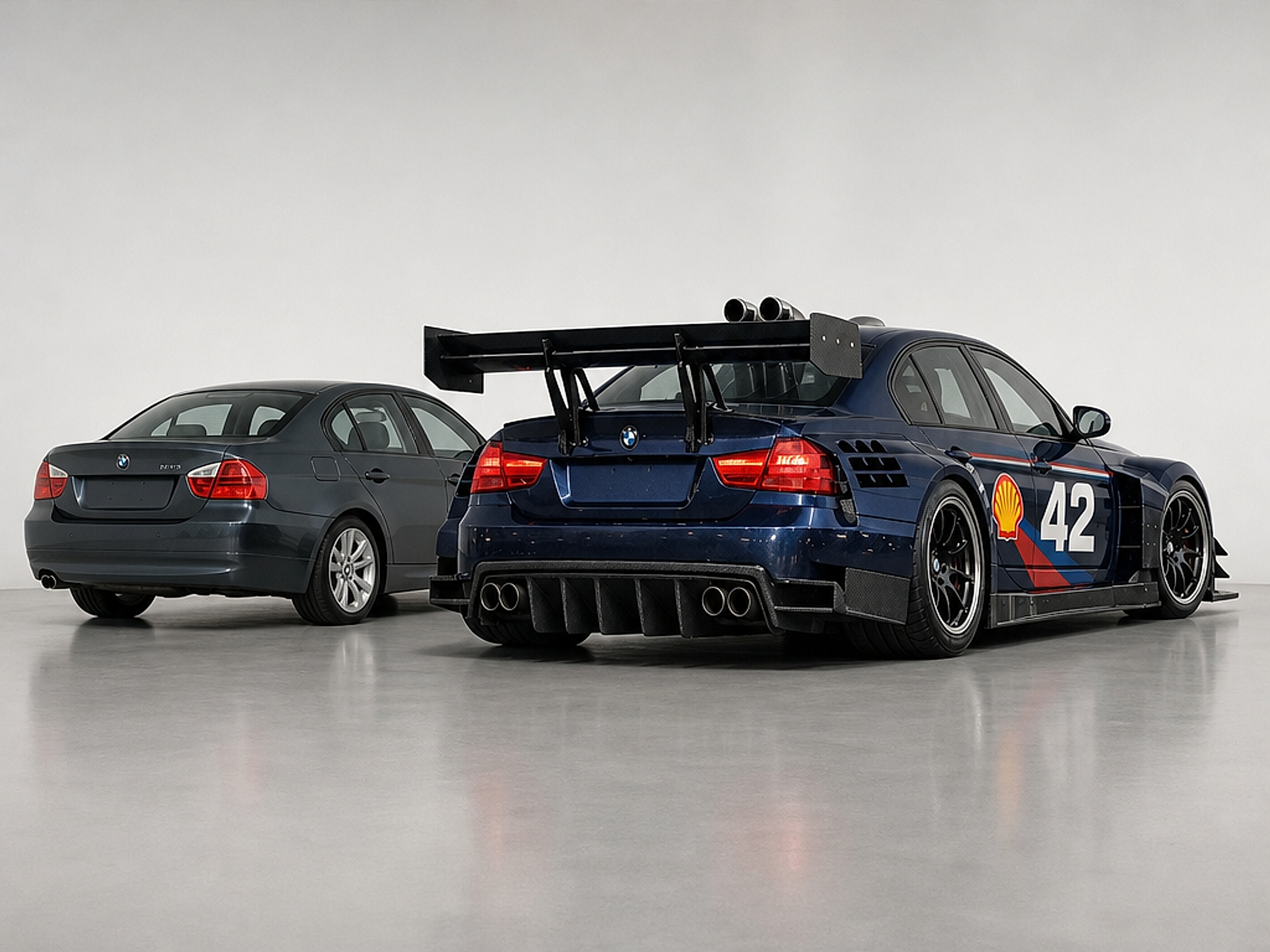

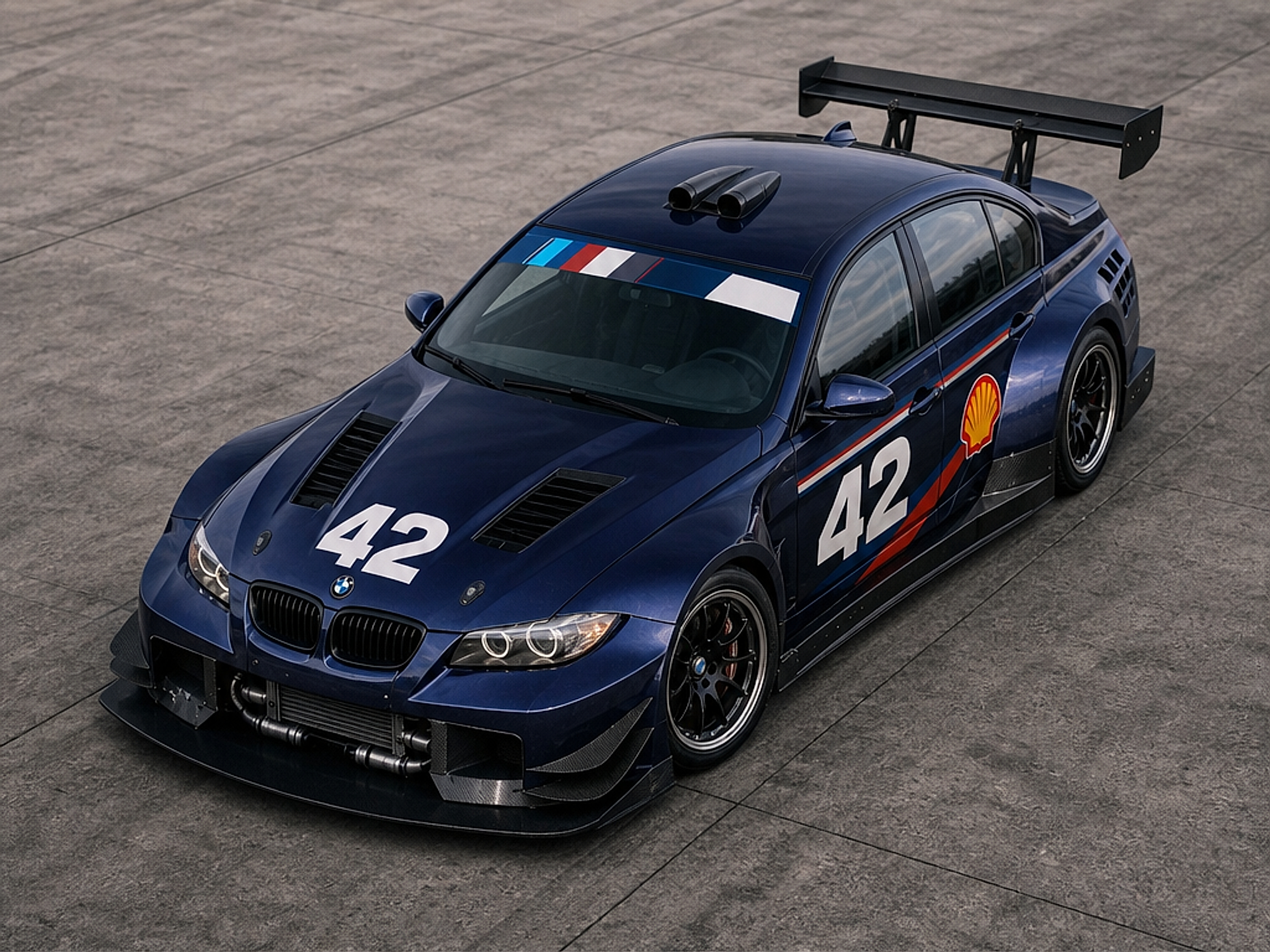

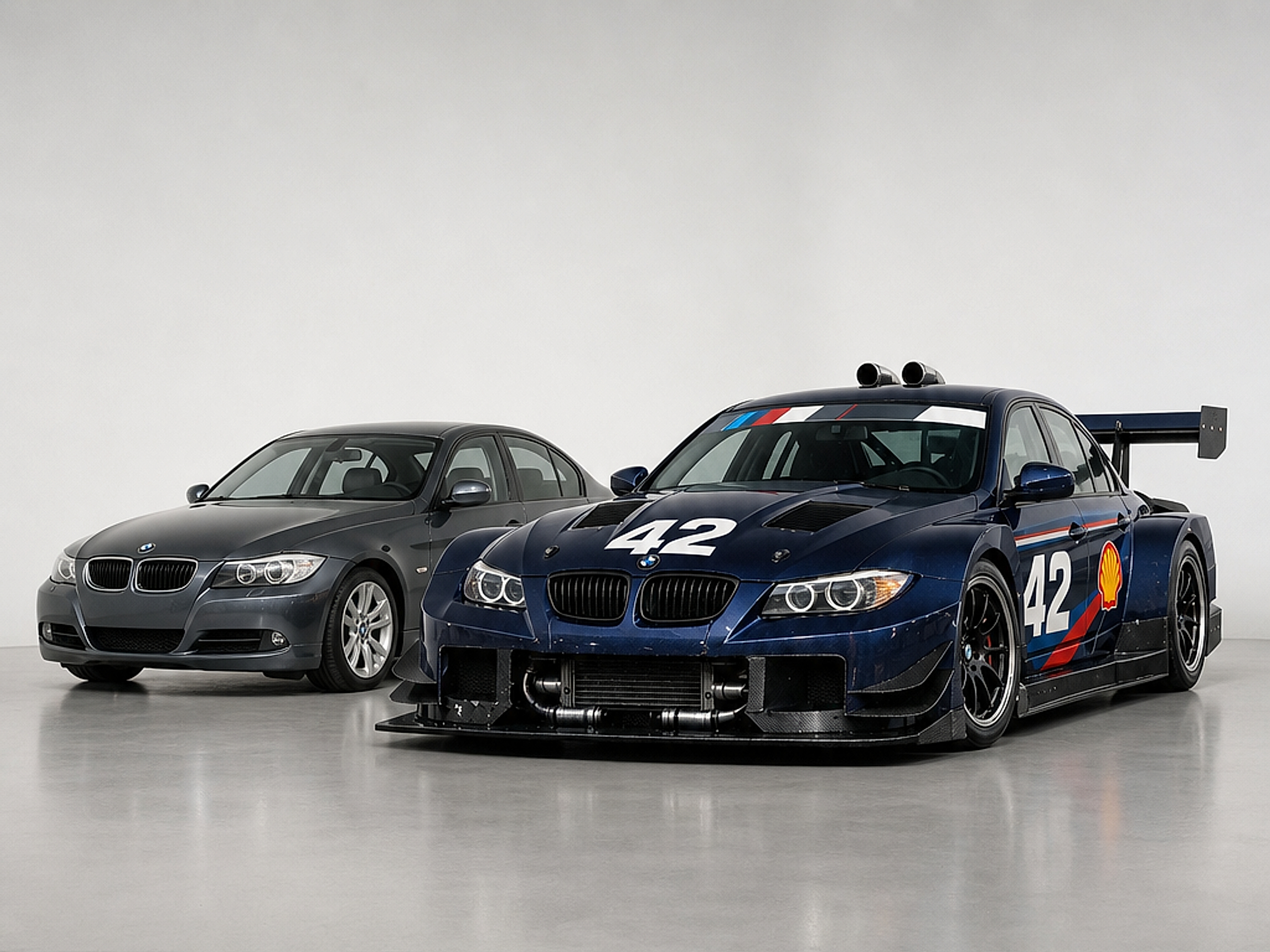

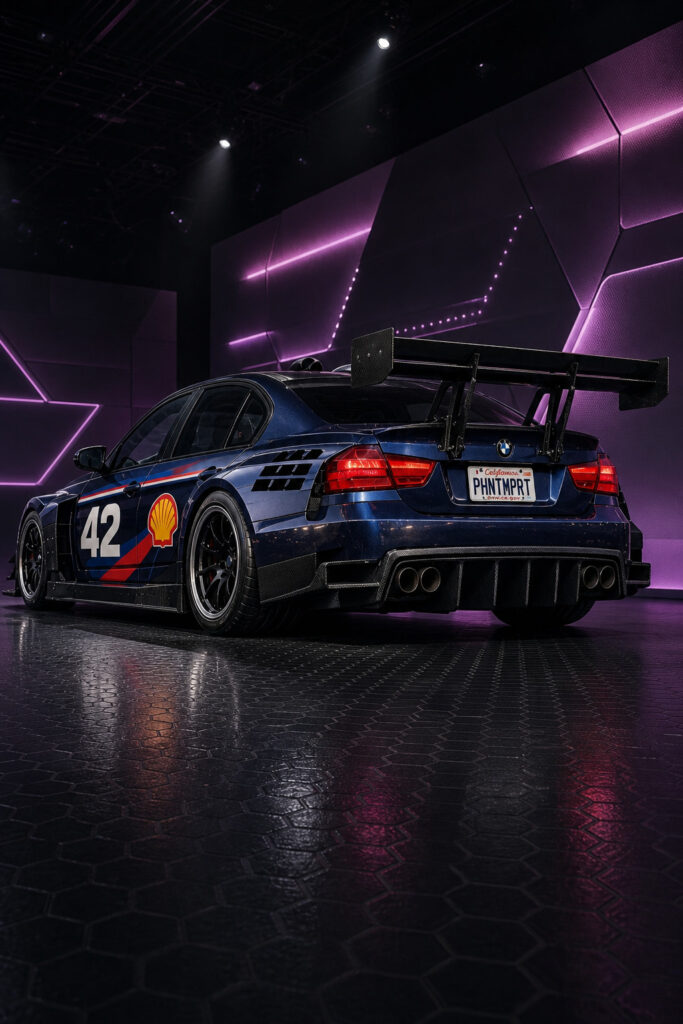

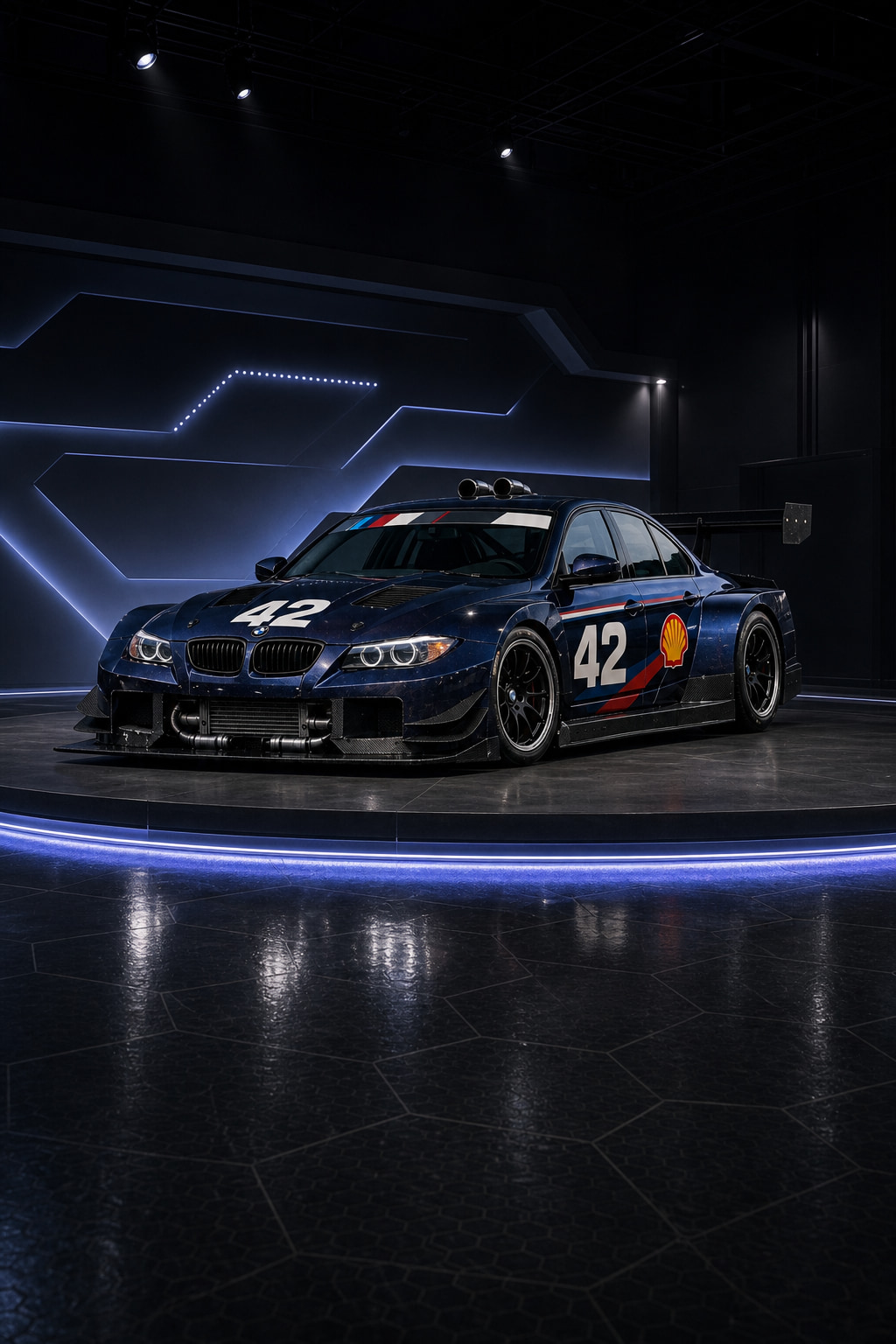

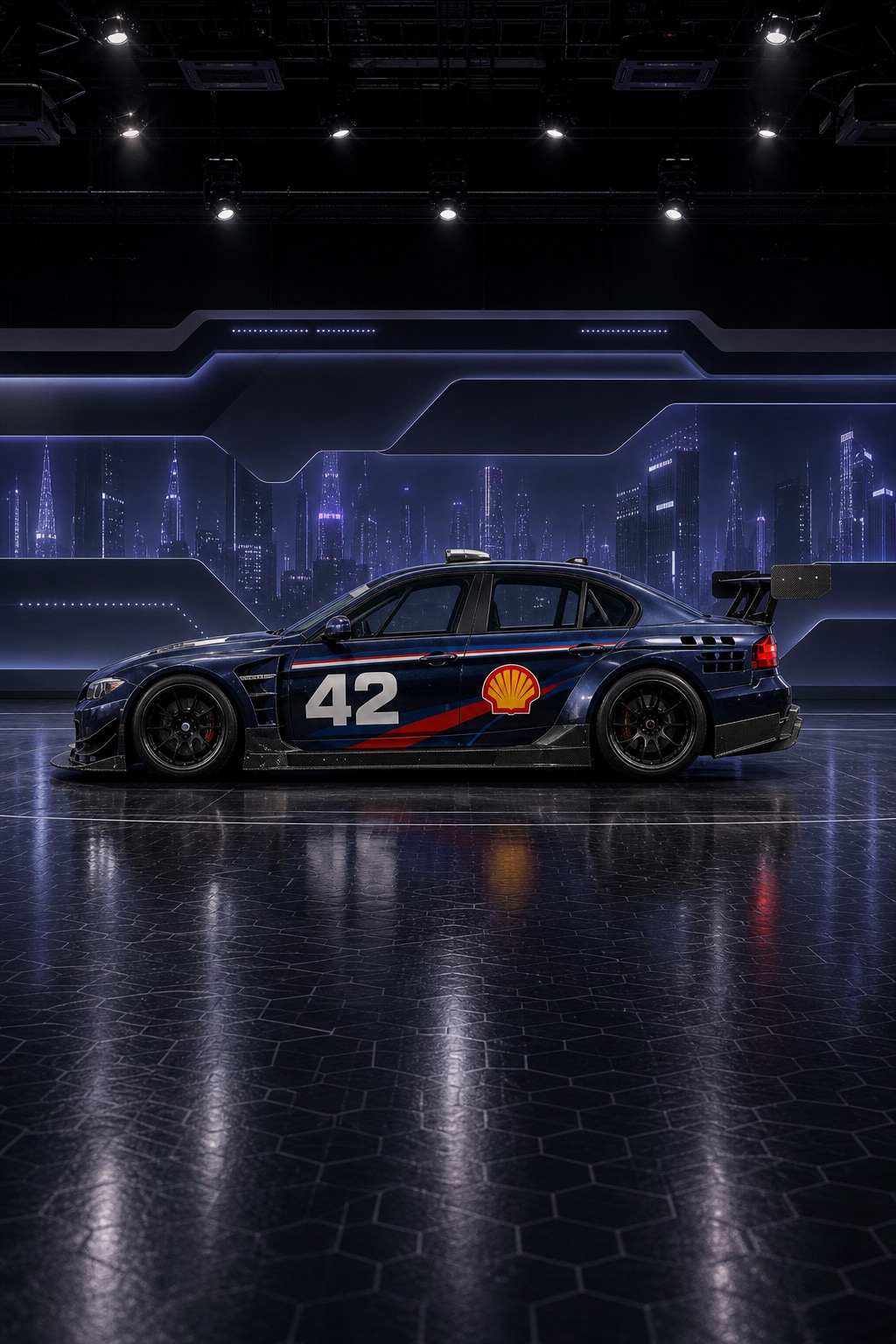

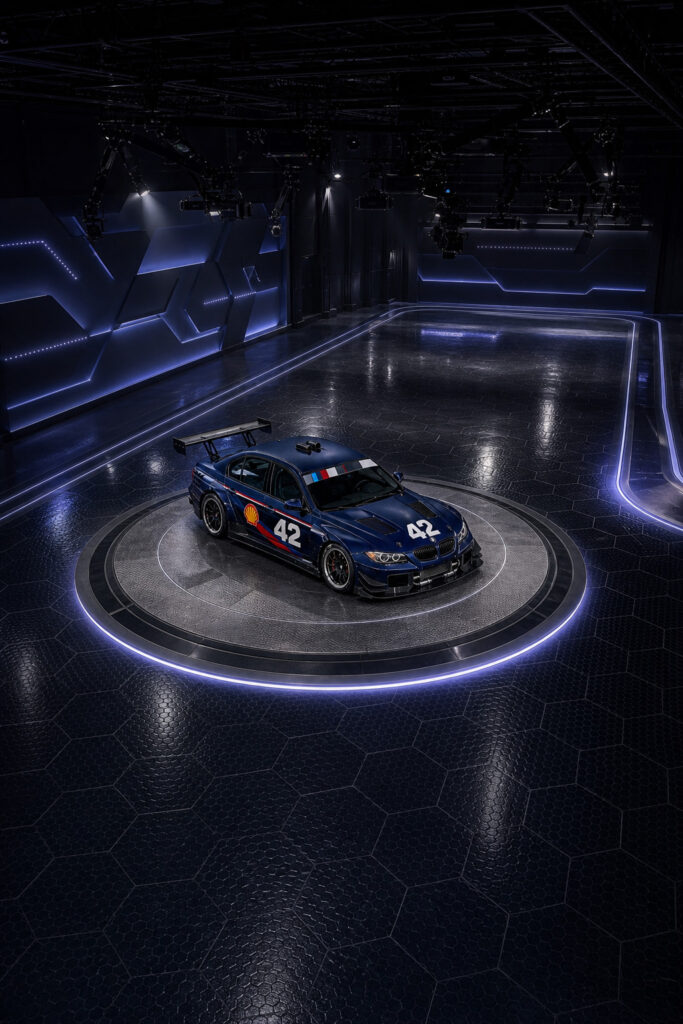

Phantom Apex Protocol starts with the most familiar silhouette in mid‑2000s Germany—the E90 sedan—and then treats it like an open‑rule endurance prototype. The roofline, glass, and four-door proportions stay unmistakably BMW, but every panel below the beltline is re-authored for airflow: faceted box arches, sidepod cooling, and a splitter/underfloor relationship that looks like it belongs in a pit lane, not a parking lot.

The point isn’t cosplay. The widened track and low ride height are backed by real packaging decisions—duct sizes that could actually feed heat exchangers, exits that respect pressure zones, and a rear aero stack (diffuser + long deck + tall swan-neck wing) designed to make downforce without cooking the car. It’s an E90 that reads like an endurance tool: brutal stance, exposed hardware, and cooling you can see working.

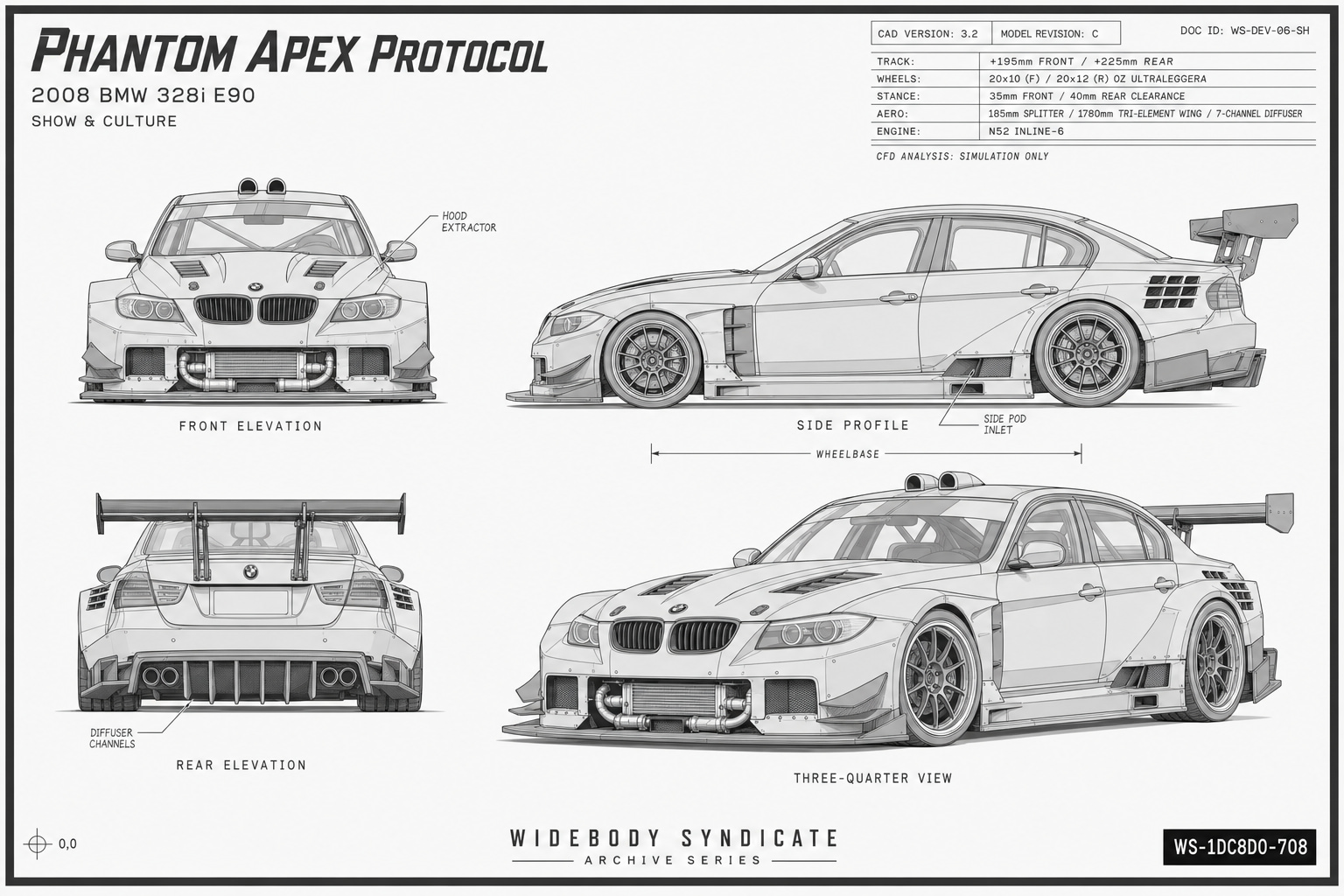

Blueprint

The Whitepaper Room

Inspect drawing ↗Open blueprint study →

Collectible Poster

Collector's Edition

Inspect poster ↗

Technical dossier

Fictional engineering concept

Platform

2008 BMW 328i E90

Powertrain concept

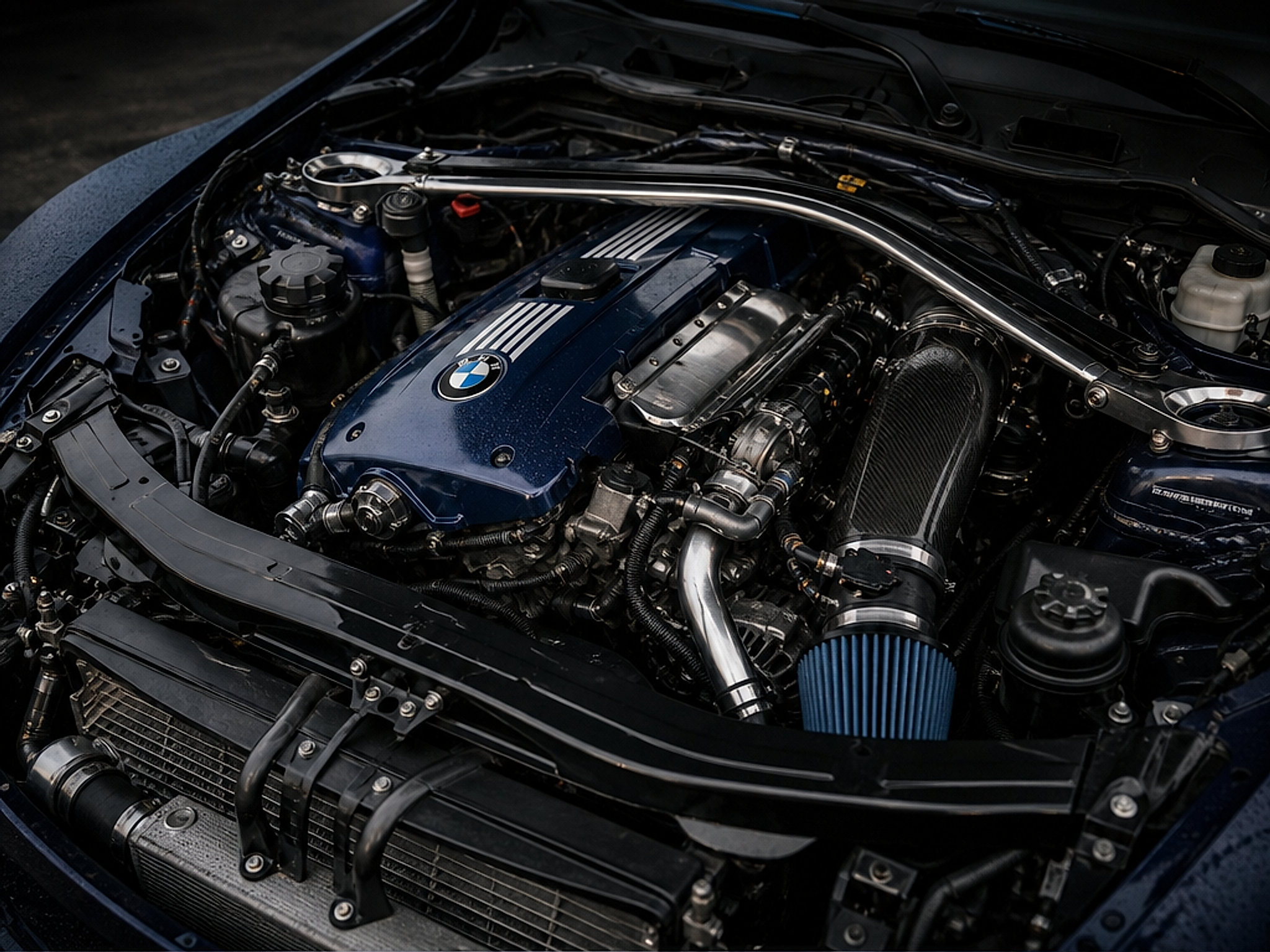

Retained BMW N52 3.0L inline‑six with endurance cooling priority and track-safe calibration
Engine set back ~75mm for improved front-mid balance and space for ducting
Dry-sump conversion concept to stabilize oiling at sustained lateral load
High-capacity radiator/sidepod heat exchanger network with controlled exits
High-mounted twin center-exit exhaust stacks with heat-shielded carbon surround

Aero package

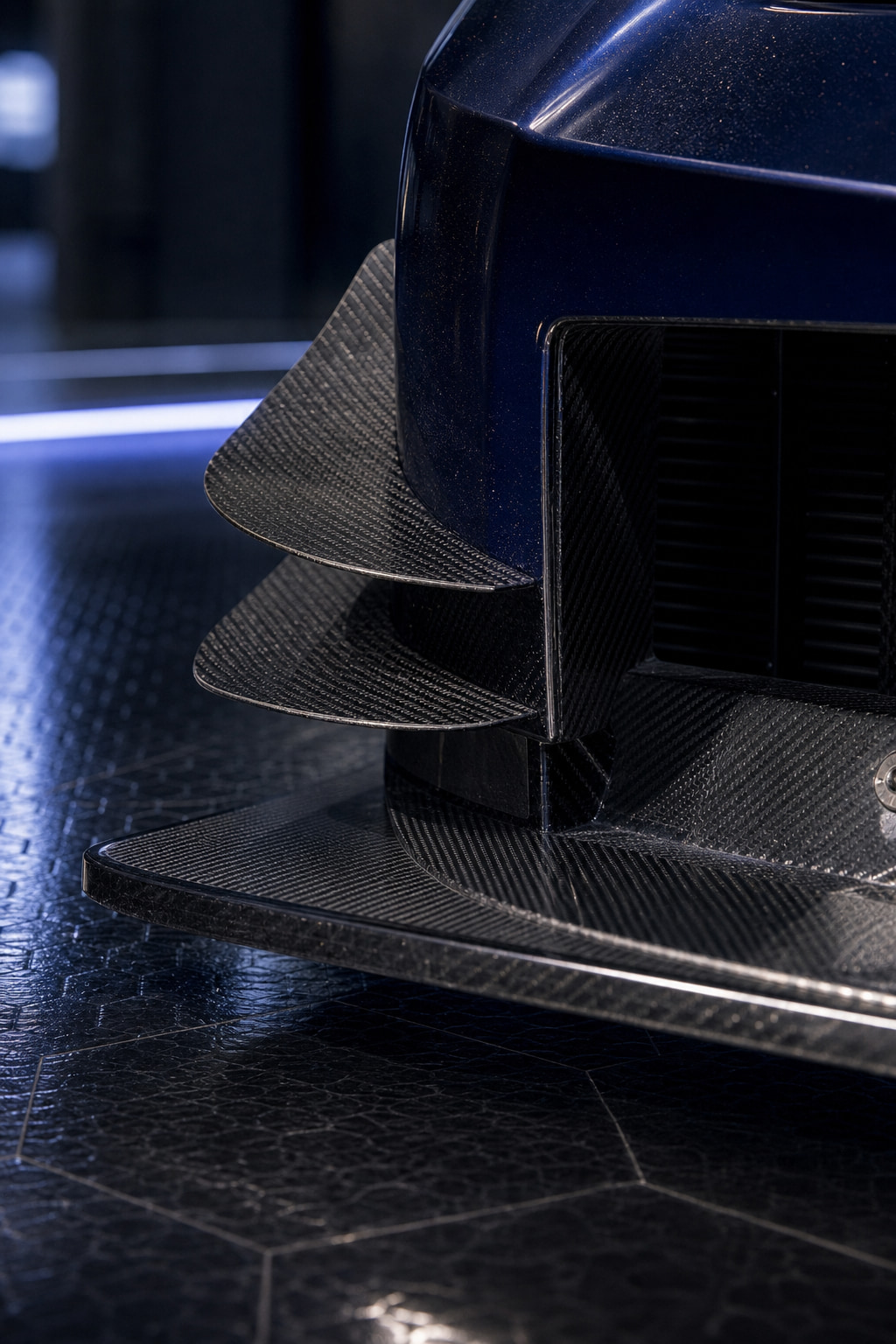

780mm flat splitter plane with twin 12° dive planes per side
Venturi-style center inlet feeding forward charge/cooling package with visible hard-pipe routing
Ground-effect oriented skirt shelves to support underbody flow

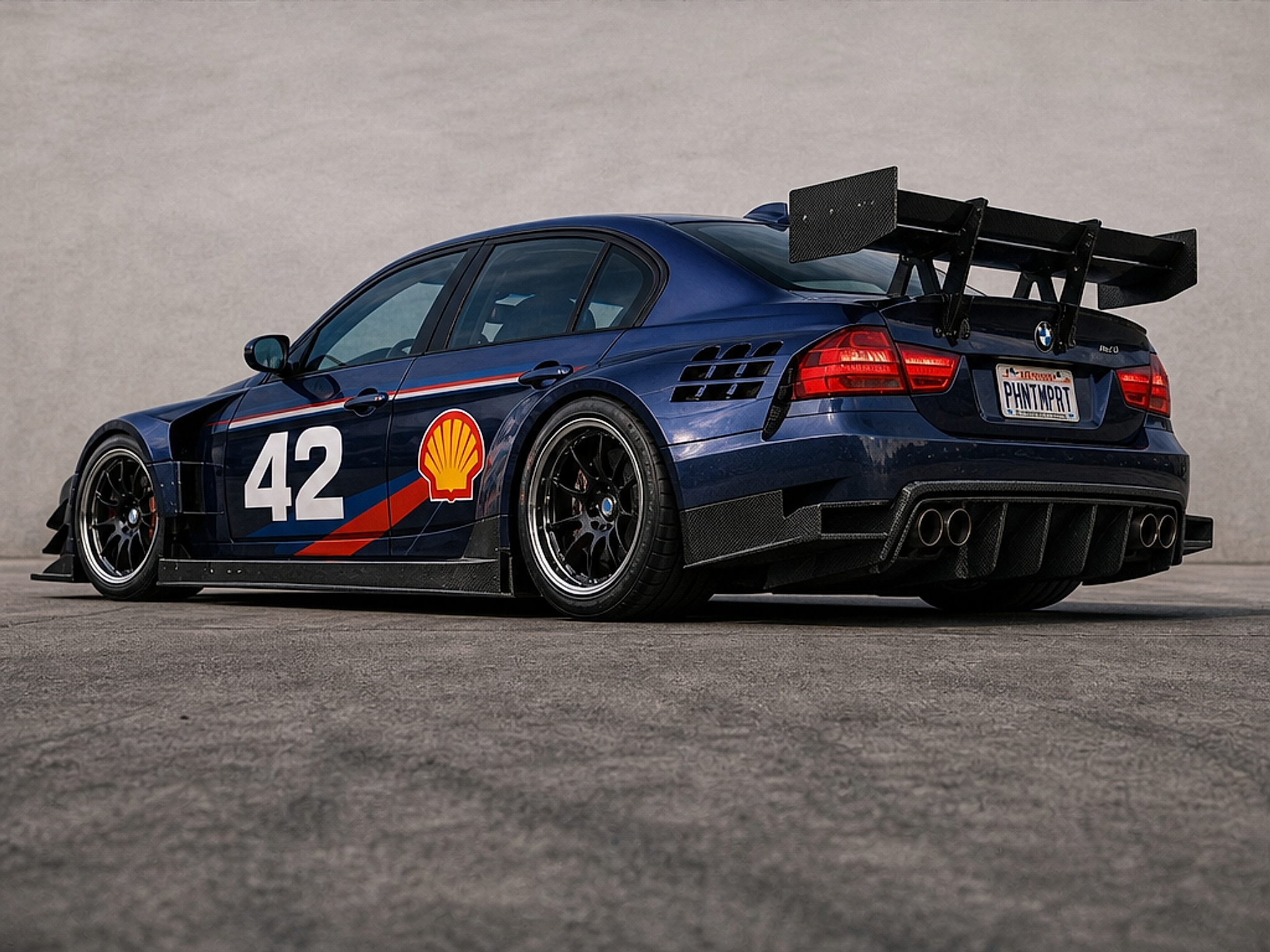

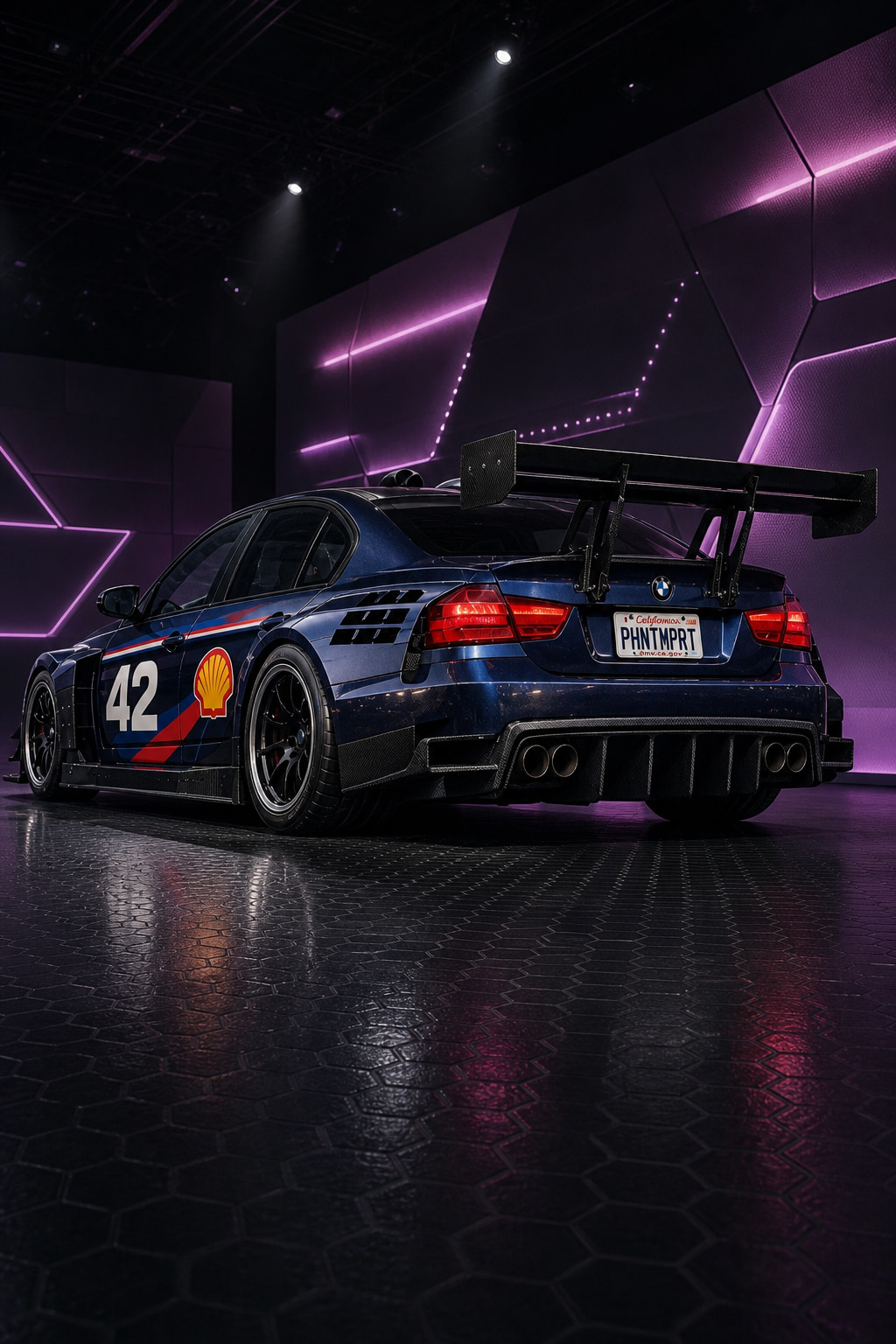

Seven-channel rear diffuser integrated into bumper with deep strakes
1780mm tri-element rear wing on tall swan-neck pylons with adjustable flap

Chassis & stance

2008 BMW 328i E90

Wheels & tires

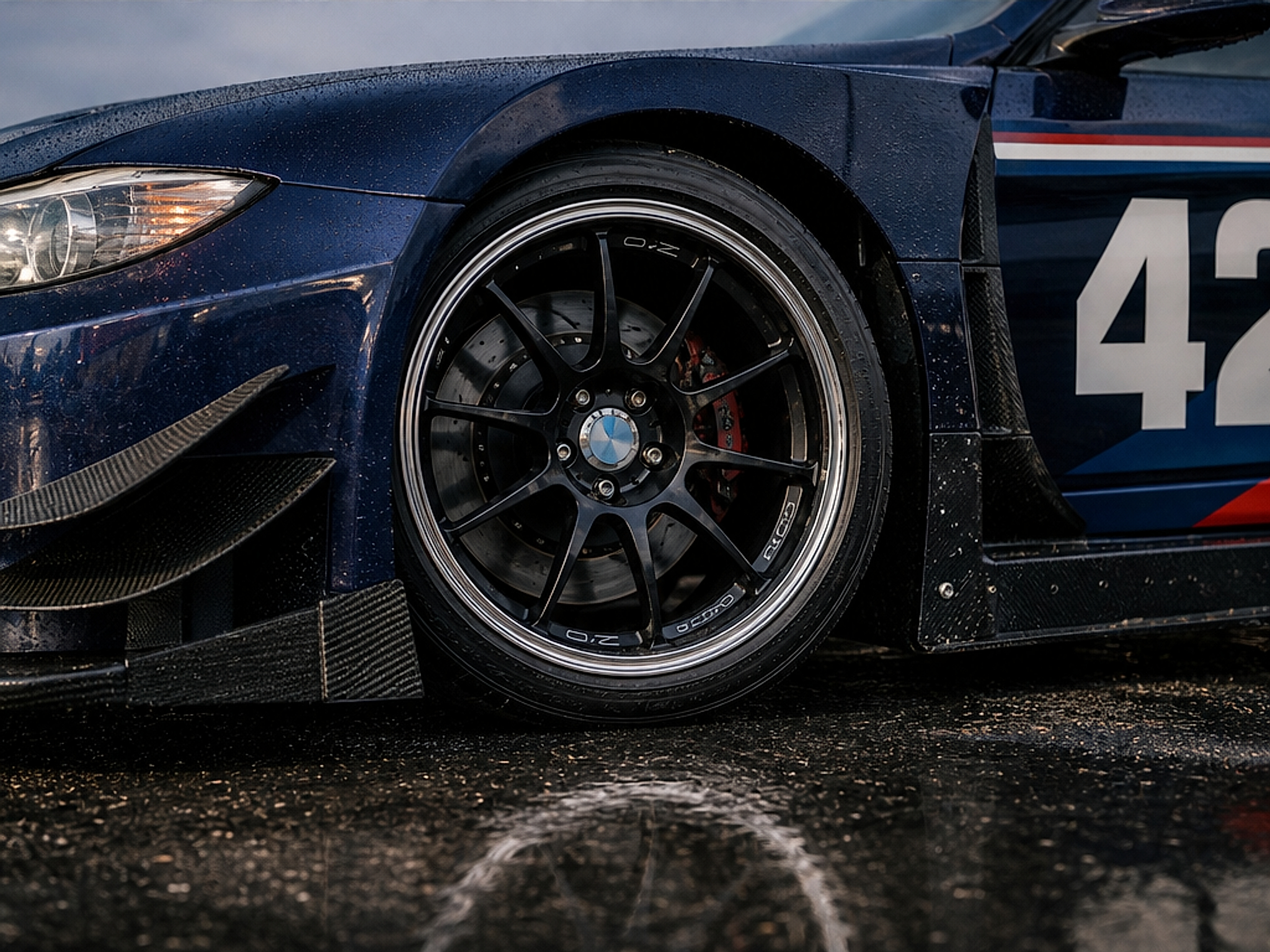

OZ Racing Ultraleggera 20x10 front, satin black centers with polished lips
OZ Racing Ultraleggera 20x12 rear, matching finish
Michelin Pilot Sport Cup 2 endurance-focused fitment (concept): 345/30R20 front
Michelin Pilot Sport Cup 2 endurance-focused fitment (concept): 375/30R20 rear

Fabrication notes

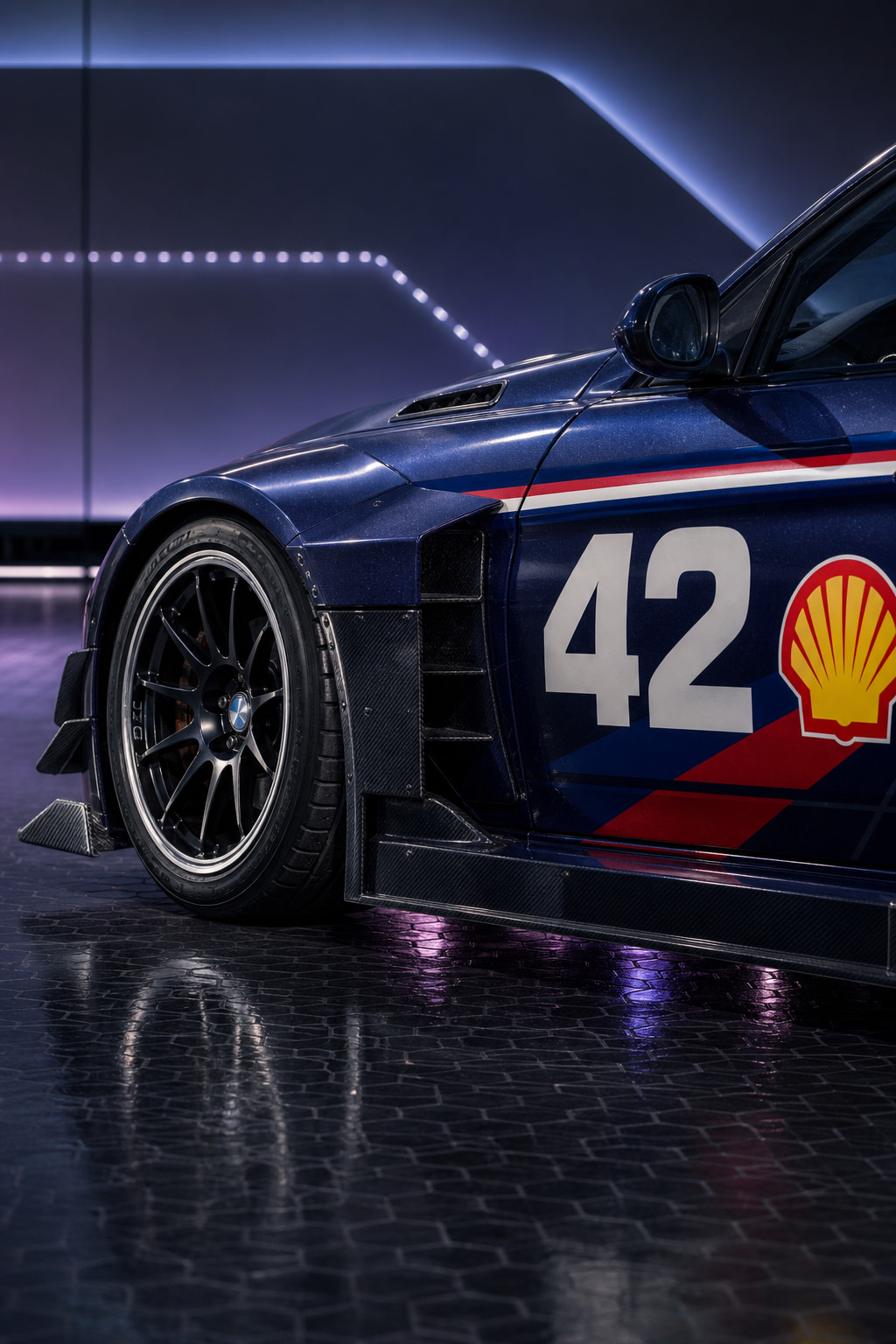

Widebody built as serviceable composite modules with fastener access for track-side removal
Front splitter and diffuser tied into chassis hardpoints with sacrificial wear surfaces
Ducting designed as sealed pressure paths (inlet → core → exit) to prevent re-circulation
Suspension pickup reinforcement and bracing to support widened track and low ride height
Heat management: reflective barriers around exhaust stacks and protected routing for exposed plumbing
