Circuit Phantom Flux
Circuit Phantom Flux treats the 2014 Nissan NV200 like a homologation loophole that never existed—keep the van’s roofline, glass rhythm, and sliding-door hardpoints, then pull everything else into a purpose-built GT5 silhouette. The stance is brutally wide (front +240mm, rear +280mm), with a low, flat floor and a modular carbon front clip that turns the NV200’s blunt nose into a pressure-management device.
It’s believable because the package is engineering-first: big, simple openings for heat rejection, a front-mid engine move for balance, and aero that’s shaped around underbody flow rather than just add-on wings. The result reads like a paddock prototype wearing a delivery van’s ID badge—boxy up top, knife-edged down low, and built to live at sustained aero load.
Release Image Studies
Image studies from every angle.
Comparison Shots
Blueprint / Collector Archive
Engineering Artifacts
The technical study and collectible interpretation of one build, preserved together.
Selected archive goods are available for collectors.
2014 Nissan NV200 Circuit Phantom Flux Collectible Poster
Price range: $18.00 through $25.00

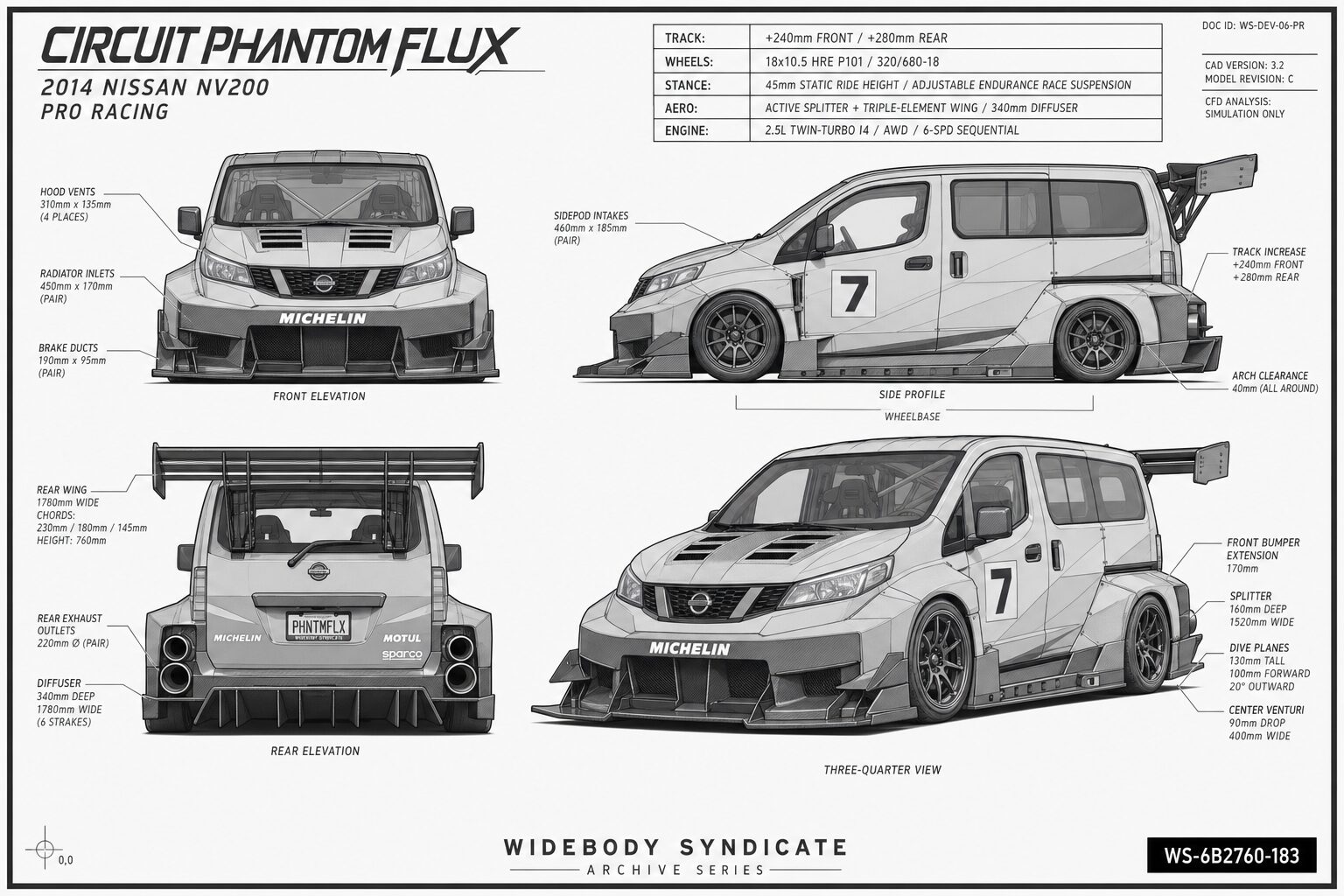

2014 Nissan NV200 Circuit Phantom Flux Blueprint Poster
Price range: $18.00 through $25.00
2014 Nissan NV200 Circuit Phantom Flux Framed Collectible Poster
Price range: $37.00 through $75.00
2014 Nissan NV200 Circuit Phantom Flux Framed Blueprint Poster
Price range: $37.00 through $75.00
Technical Dossier
▧
Platform

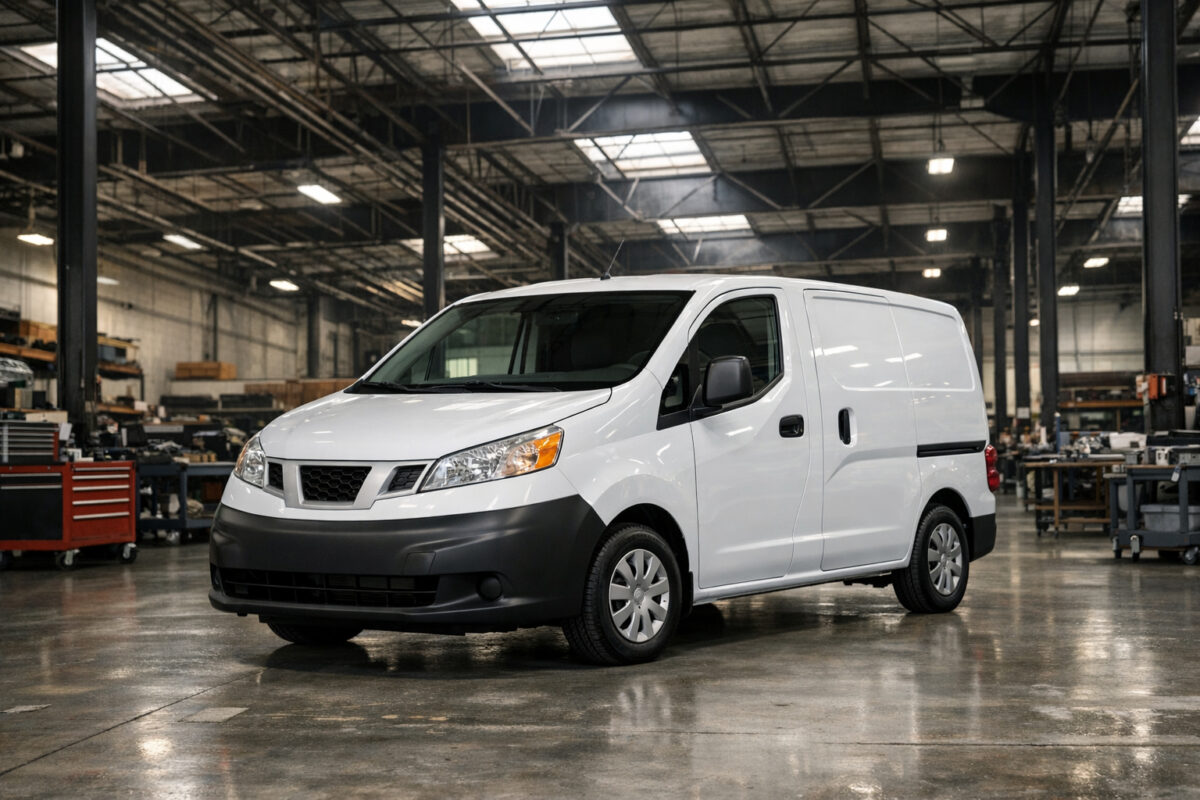

2014 Nissan NV200
The 2014 Nissan NV200 is a compact cargo van designed with urban utility and efficiency at its core. Its boxy, no-nonsense silhouette maximizes interior cargo volume within a compact footprint, making it an ideal workhorse in tight city environments. Beneath its practical exterior lies an architecture focused on durability and functionality, featuring a front-wheel-drive layout that enhances maneuverability and fuel economy. The NV200's chassis balances a robust suspension setup with predictable handling, providing a stable platform for a variety of commercial and custom applications.
⌘
Aero Package
Modular carbon front bumper projecting +170mm with 160mm-deep primary splitter plane
Deployable twin dive planes (130mm tall) for balance tuning across corner phases
Full underfloor with Venturi tunnels feeding a 340mm-deep, six-strake rear diffuser
Triple-element rear wing (1780mm span) on swan-neck pylons with adjustable AoA
⟡
Chassis
Flux is framed for a 2045 GT5 calendar: high-speed sections that reward underfloor efficiency, plus slow complexes where traction and brake temperature control decide the run. The aero package is tuned around stability in yaw—because a boxy roofline still has to behave in dirty air and crosswind.
◎
Wheels & Tires

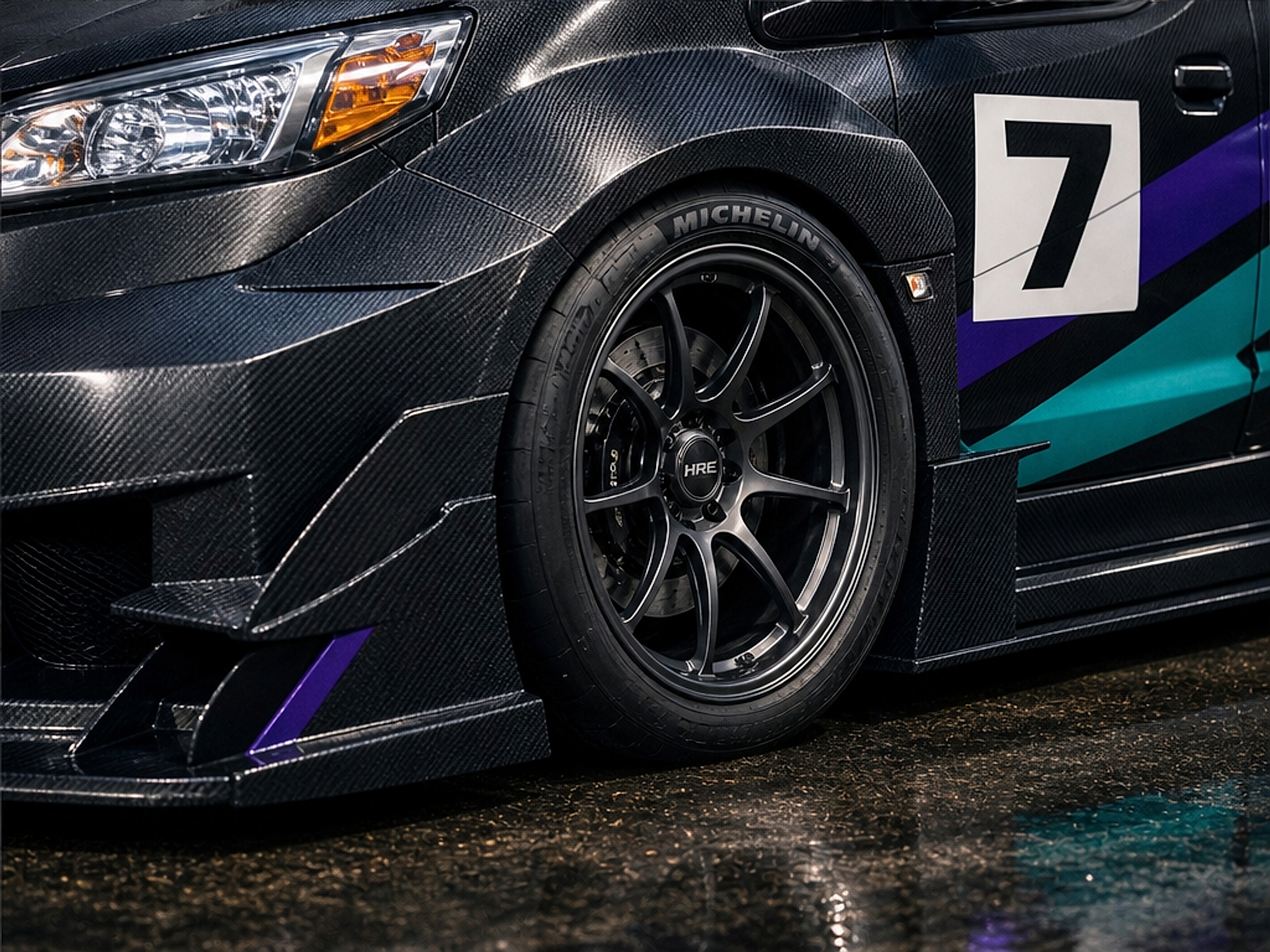

18x10.5 forged HRE P101 monoblocks in matte gunmetal
Michelin Pilot Sport GT slicks: 320/680-18 square setup
Endurance-spec brake package with dedicated front ducting and louvered fender exits
▤
Powertrain

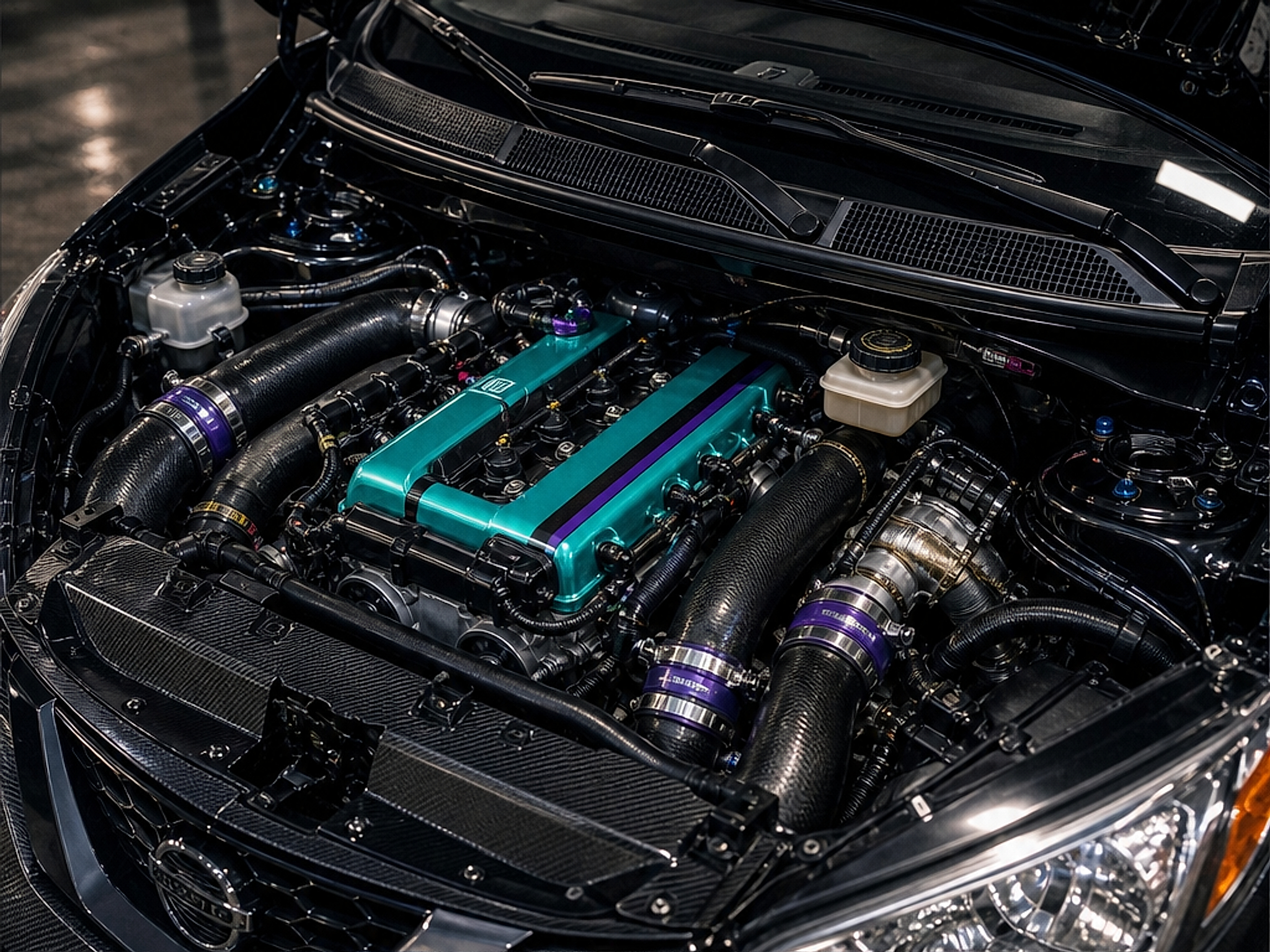

2.5L twin-turbo inline-four, front-mid relocated ~160mm rearward for balance
6-speed sequential with paddle control and motorsport-grade torque management
AWD with front/rear limited-slip differentials tuned for slick tire load
Expanded cooling: front water/oil, front intercooler, and sidepod radiator support
△
Fabrication Notes
Modular front clip designed for fast service: splitter, ducts, and crash structure as one assembly
Bonded composite flare strategy to avoid rivet turbulence and keep flow attached at yaw
Underfloor tunnel geometry packaged around suspension pickup points and heat shielding
Rear diffuser integrates transmission/diff heat extraction outlets for endurance reliability
×
Design Philosophy
Circuit Phantom Flux treats the 2014 Nissan NV200 like a homologation loophole that never existed—keep the van’s roofline, glass rhythm, and sliding-door hardpoints, then pull everything else into a purpose-built GT5 silhouette. The stance is brutally wide (front +240mm, rear +280mm), with a low, flat floor and a modular carbon front clip that turns the NV200’s blunt nose into a pressure-management device.
It’s believable because the package is engineering-first: big, simple openings for heat rejection, a front-mid engine move for balance, and aero that’s shaped around underbody flow rather than just add-on wings. The result reads like a paddock prototype wearing a delivery van’s ID badge—boxy up top, knife-edged down low, and built to live at sustained aero load.
