Story

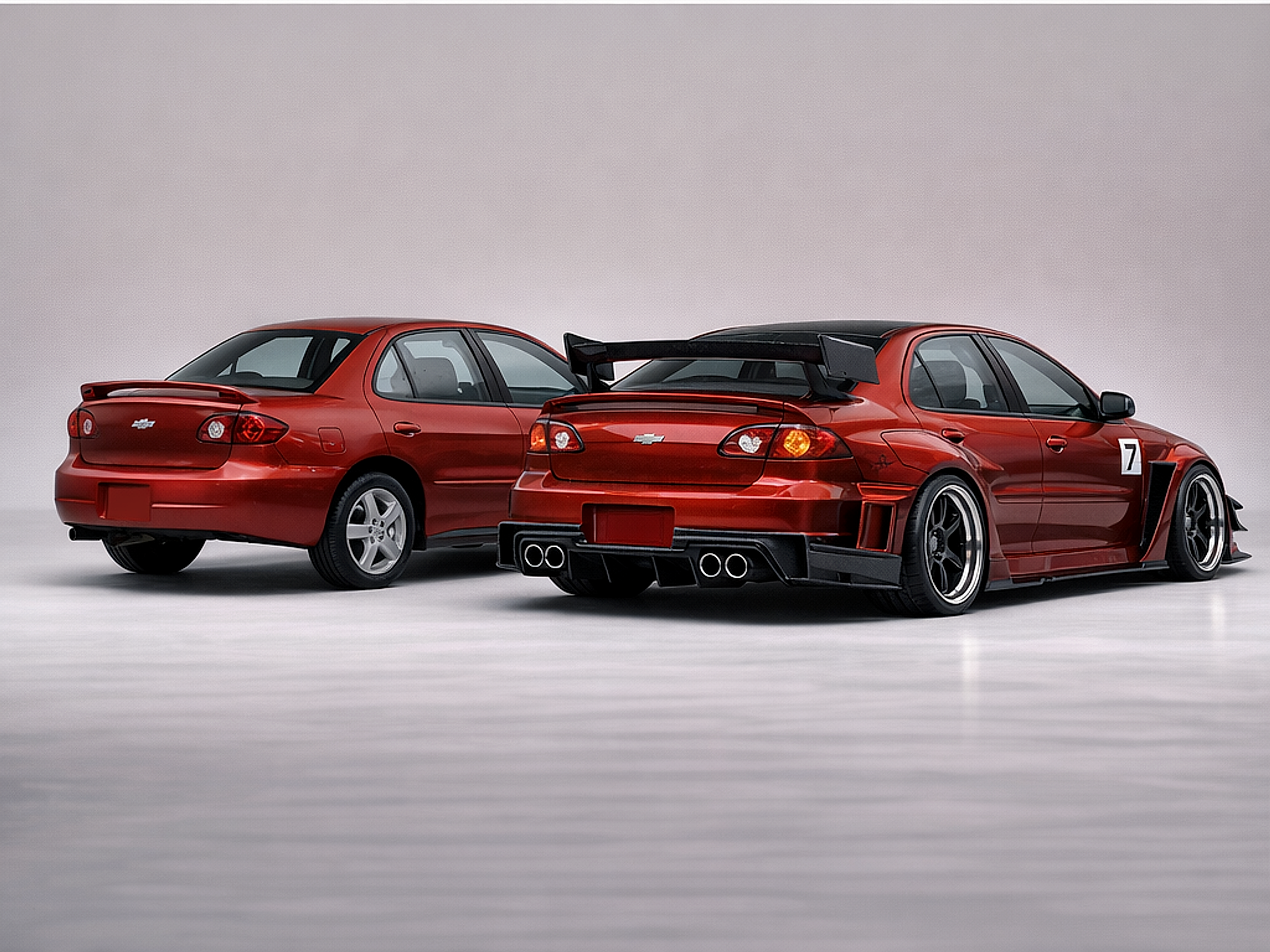

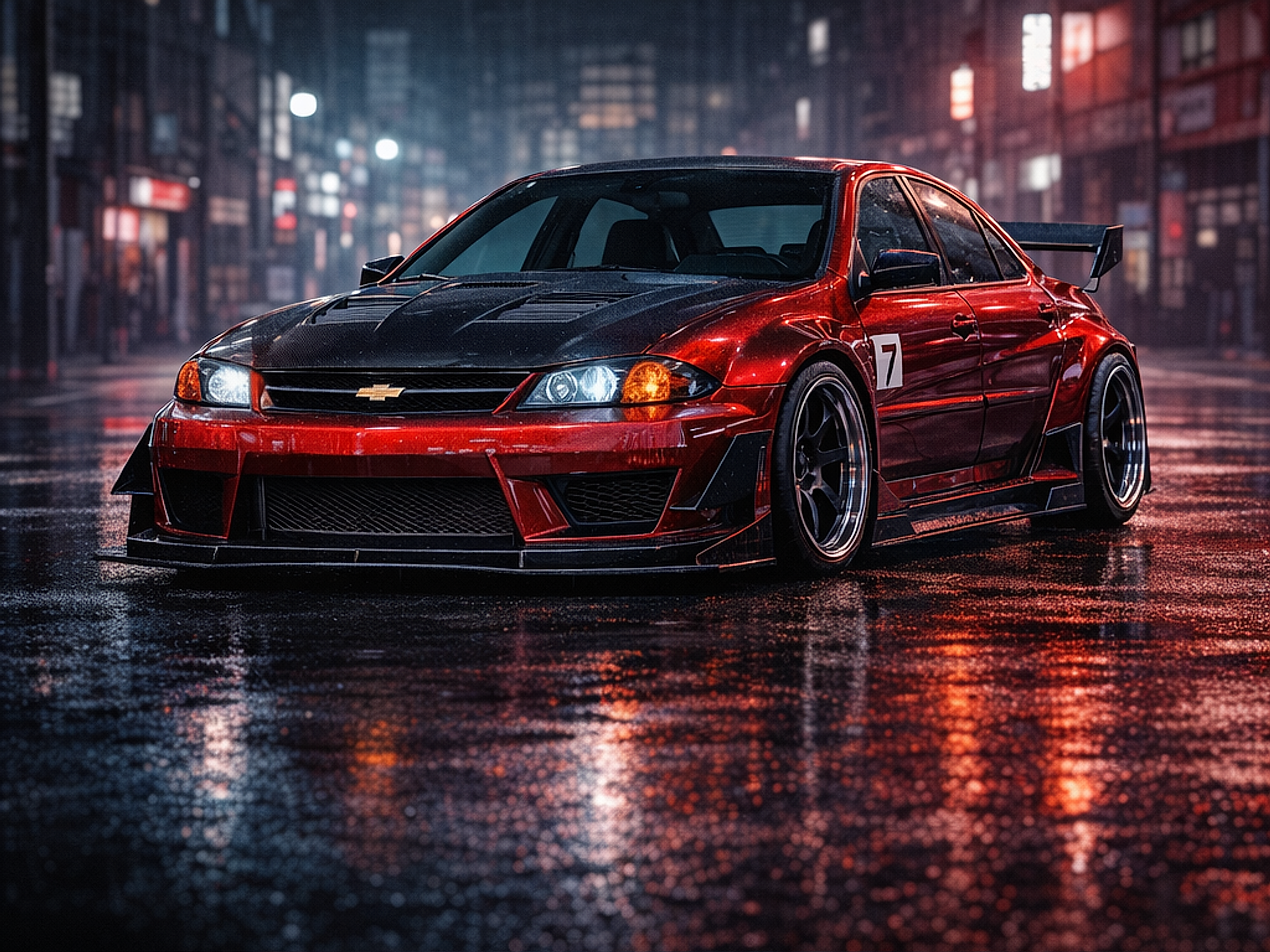

Crimson Kaiju Initiative takes the most anonymous sedan in the apartment lot and pushes it through a very specific early‑2000s tuner lens: big track, squared lips, carbon vents, and aero that looks like it was drawn with a straightedge. The Cavalier’s roofline and four-door proportions stay intact, but everything below the beltline gets re-authored into a wide, low silhouette that reads more Kanjo-adjacent than Midwest commuter.

The engineering intent is simple and believable: more tire, more cooling, more stability at speed. The 160mm front and 190mm rear overfenders exist to clear real rubber, while the hood louvers, brake ducts, and underbody management are there to keep a hard-driven four-cylinder alive on hot nights and long pulls between lights.

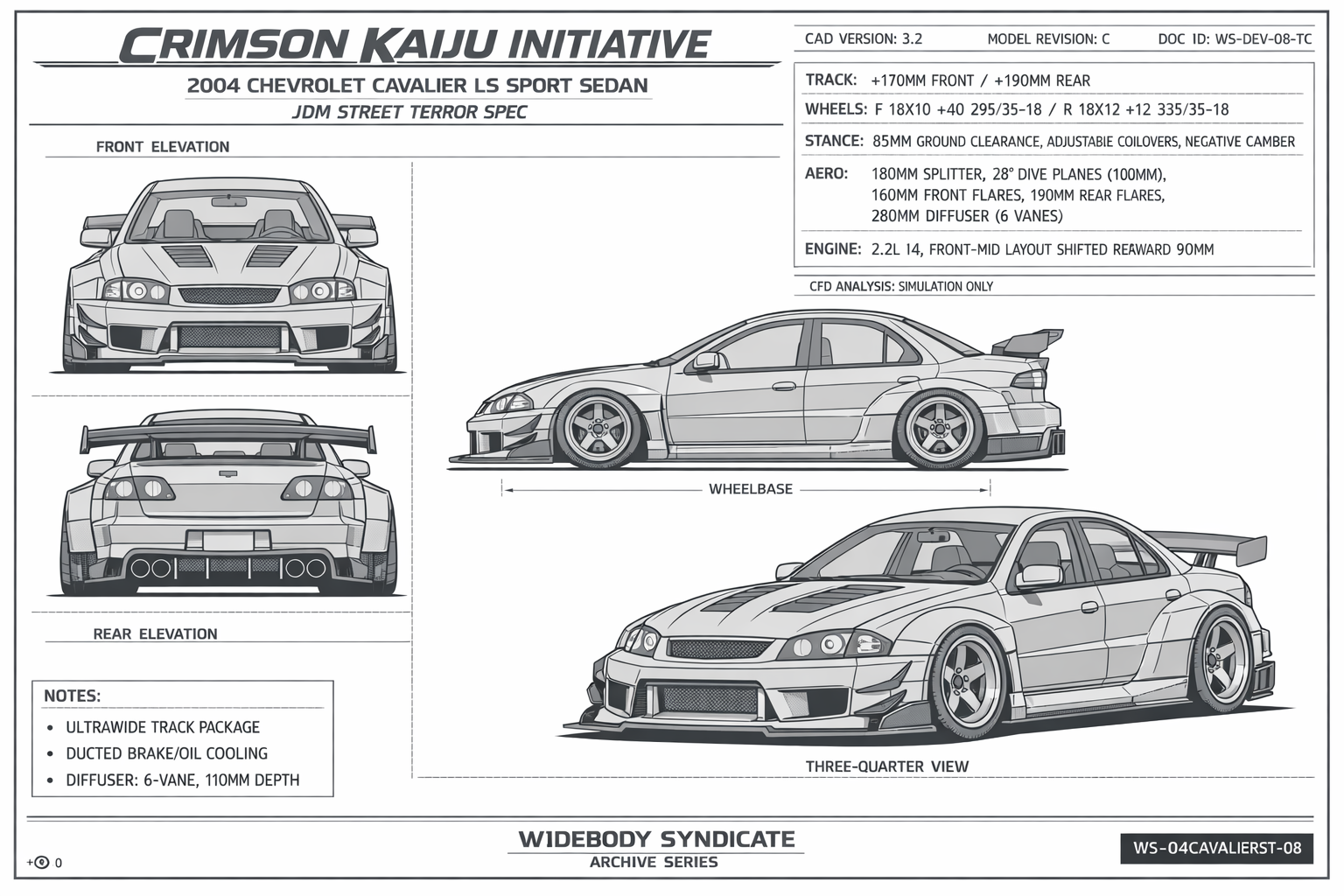

Blueprint

The Whitepaper Room

Inspect drawing ↗Open blueprint study →

Collectible Poster

Collector's Edition

Inspect poster ↗

Technical dossier

Fictional engineering concept

Platform

2004 Chevrolet Cavalier LS Sport Sedan

Powertrain concept

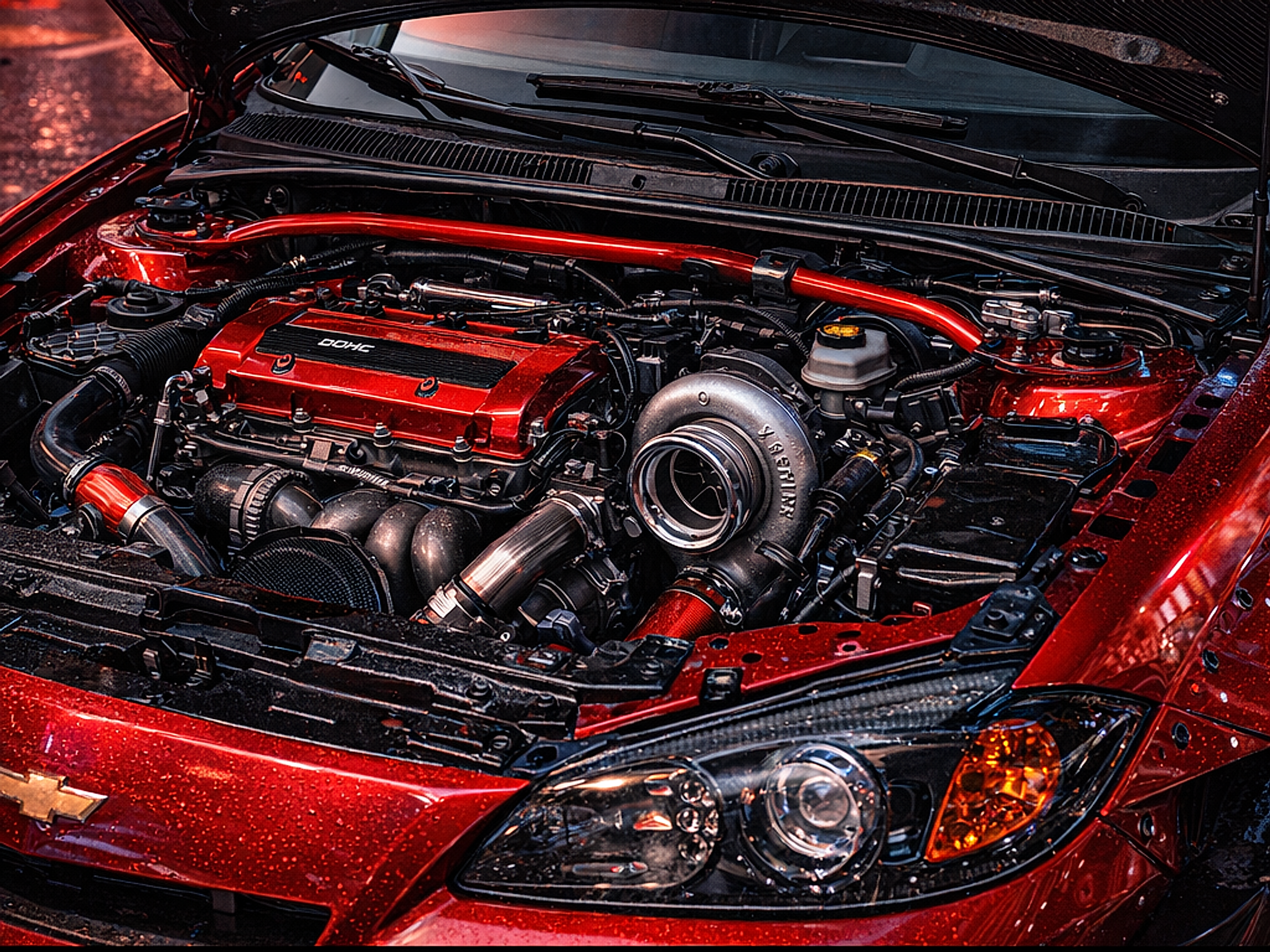

Built high-rev 2.2L Ecotec architecture with forged rotating assembly and balanced valvetrain
Streetable boost via compact turbo and efficient intercooling, tuned for response over peak numbers
Engine shifted rearward ~90mm for improved front axle load and turn-in
Upgraded oiling and cooling strategy: ducted oil cooler, high-capacity radiator, proper heat extraction

Aero package

180mm flat front splitter with corner dive planes (28° inward, ~100mm tall)
Ducted front bumper side intakes feeding brake cooling and oil cooler packaging
Leading-edge fender vane inserts to manage wheel-well turbulence and extract heat

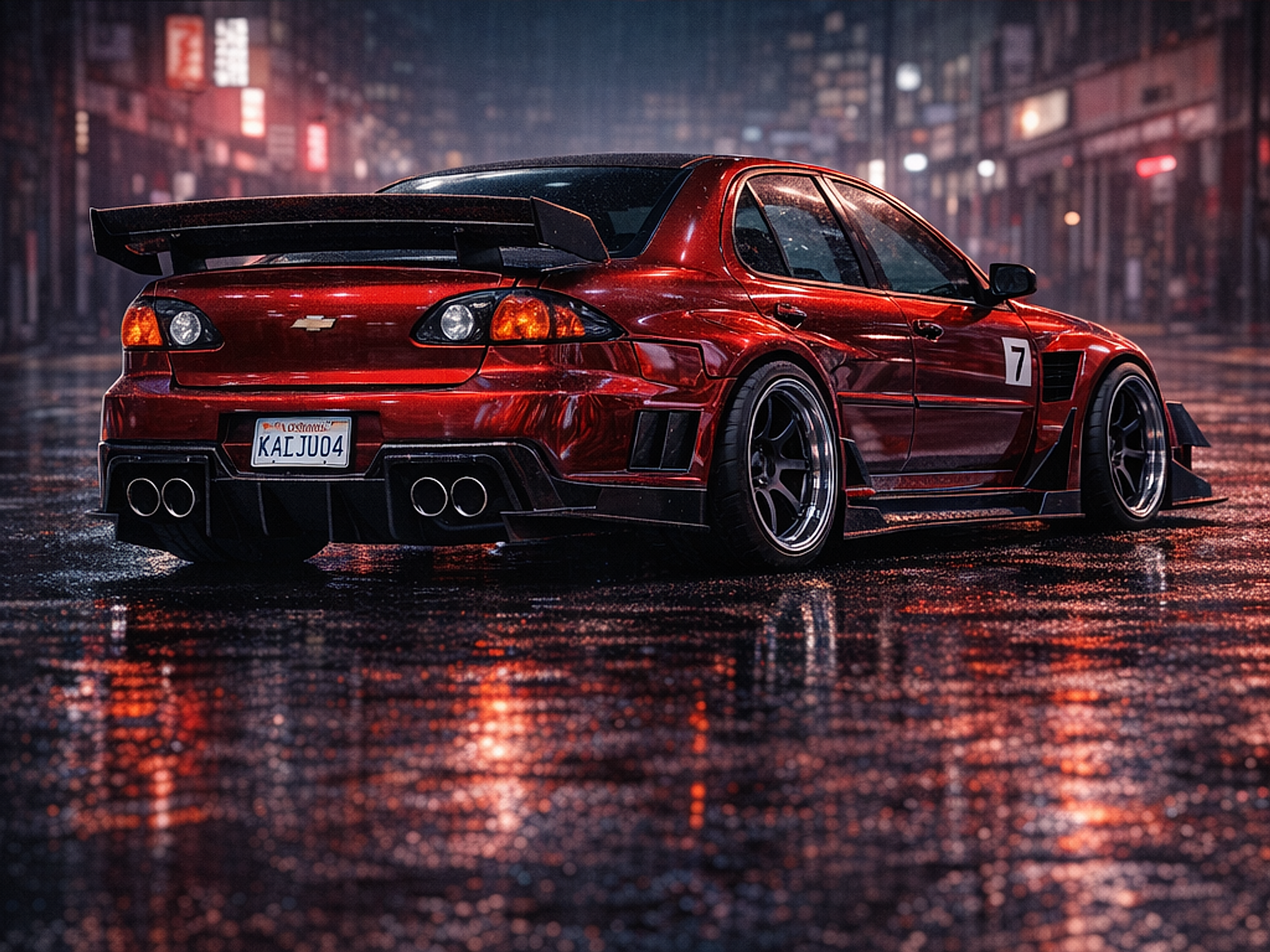

Rear diffuser extending low with six vertical vanes for underbody flow control
Forged-carbon beak spoiler tuned for clean separation without excessive drag

Chassis & stance

2004 Chevrolet Cavalier LS Sport Sedan

Wheels & tires

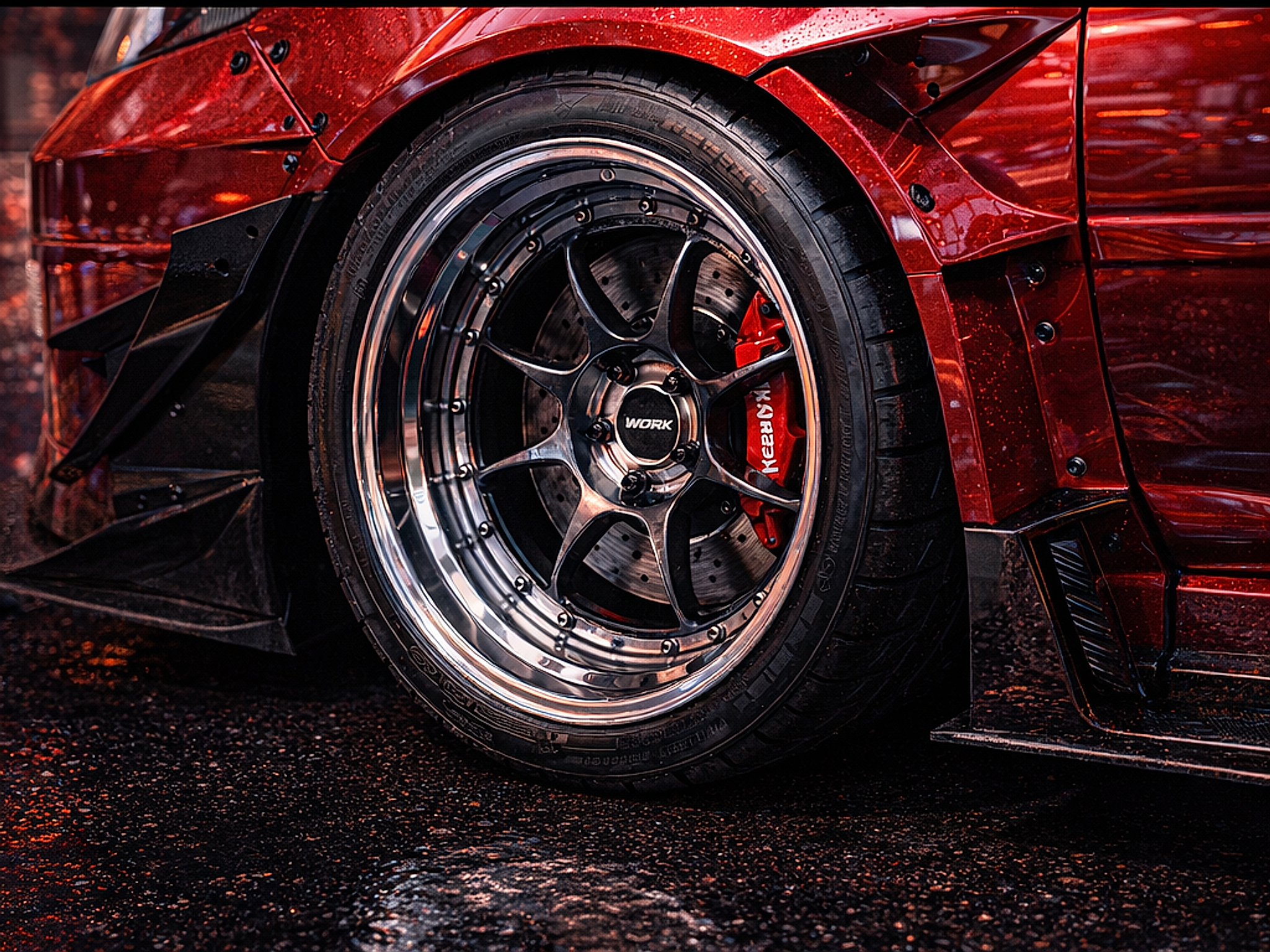

Front: 18x10 Work Meister (approx +40) on 295/35R18 Yokohama Advan Neova
Rear: 18x12 (approx +12) on 335/35R18 high-grip street tire
Aggressive negative camber calibrated for clearance at full compression and steering lock
Staggered footprint matched to the widened track for stability under power and trail-braking

Fabrication notes

Widebody tied into metal structure with reinforced mounting points to survive real street mileage
Brake and oil cooler ducting formed as sealed channels, not open “show” holes
Undertray and diffuser transitions shaped to reduce turbulence and keep the rear stable at speed
Coilover geometry set for 85mm ground clearance without destroying roll center and bump travel
Clearance checks for tire-to-lip and tire-to-inner at full lock and full bump
